One-way Stretch Uniaxial Geogrid for Pavement

Uniaxial geogrid is a kind of geosynthetics. This product is designed for roadbed and pavement improvement. It is characterized by a one-way stretch structure. This unidirectional structure forms a compact interlock system. Uniaxial geogrid has good flexural stiffness and high strength. It can effectively reinforce soil structure and prevent soil from displacement. Uniaxial geogrid largely increases the durability of subgrade structure and prolongs the road life. Uniaxial geogrid can greatly reduces aggregate fill thickness. It provides a cost-effective solution for civil engineering and geotechnical projects.

Uniaxial geogrid is suitable for various soil types and climate conditions. It performs well in preventing slope and road from landslide and subsidence. Uniaxial geogrid is widely applied roadbed stabilization, pavement improvement, retaining wall and bridge abutment reinforcement.

A piece of uniaxial geogrid on light gray background.

Uniaxial geogrid has a highly oriented structure. This structure forms a stiff interlocking system.

There are two pieces of uniaxial geogrid in different lengths.

The specifications of uniaxial geogrid can be customized according to the project demands.

A roll of uniaxial geogrid spreads on the ground.

Uniaxial geogrid is usually delivered in the form of rolls.

There are a large quantity of uniaxial geogrids in our warehouse.

We can supply from stock.

Uniaxial geogrid Specifications

Material: polyethylene (PE), high density polyethylene (HDPE) or polypropylene (PP).

Index Properties
Properties Units UX1100 UX1400 UX1500 UX1600 UX1700 UX1800
Tensile Strength at 5% Strain kN/m (lb/ft.) 27 (1,850) 31 (2,130) 52 (3,560) 58 (3,980) 75 (5,140) 95 (6,510)
Ultimate Tensile Strength kN/m (lb/ft.) 58 (3,970) 70 (4,800) 114 (7,810) 144 (9,870) 175 (11,990) 210 (14,390)
Junction Strength kN/m (lb/ft.) 54 (3,690) 66 (4,520) 105 (7,200) 135 (9,250) 160 (10,970) 180 (12,340)
Flexural Stiffness (mg-cm) 500,000 730,000 5,100,000 6,000,000 9,075,000 9,500,000
Load Capacity
Properties Units UX1100 UX1400 UX1500 UX1600 UX1700 UX1800
Maximum Allowable (Design) Strength kN/m (lb/ft.) 21.2 (1,450) 25.6 (1,760) 41.8 (2,860) 52.7 (3,620) 64.1 (4,390) 74.1 (5,080)

Other specifications can be customized according to your specific requirements.

Features:

  • High tensile strength.
  • Small deformation.
  • Good creep resistance.
  • Good installation damage resistance.
  • Good long term degradation resistance.
  • Quick installation.

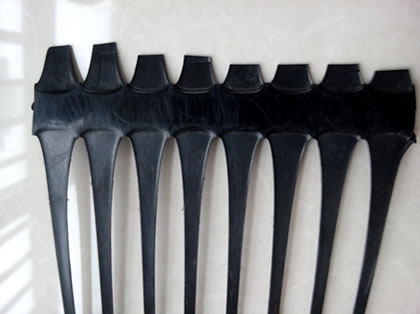

The edge part of black uniaxial geogird p on the floor.

Uniaxial geogird with sturdy edge features high tensile strength.

Two hands are folding a piece of black uniaxial geogird.

Uniaxial geogird features creep resistance.

Applications:

  • Used in the reinforcement of soft soil, roadbed, pavement, retaining wall, slope, working platforms, parking lots, bridge abutments, embankment, and so on.
  • Used in the paving of roads, railway, highway.
